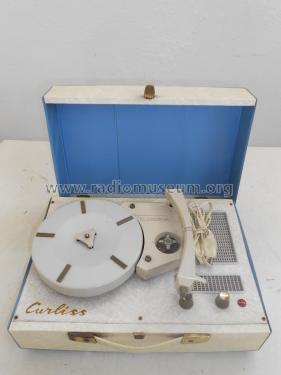

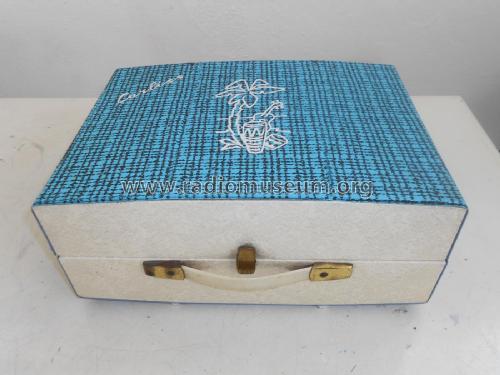

Curliss CR-1

• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1960 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 127686

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Curliss CR-1 - LESA ; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 160 x 280 mm / 15 x 6.3 x 11 inch

• Notes
• LESA Curliss CR-1;
  Four speed drive, MS/78 needle.

• Net weight (2.2 lb = 1 kg)
• 2.850 kg / 6 lb 4.4 oz (6.278 lb)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
