• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139612

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF194 BF195 BF195 BC205 BC108B AC141 AC142 AA119 AA119 10337

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Funny - LESA ; Milano

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes

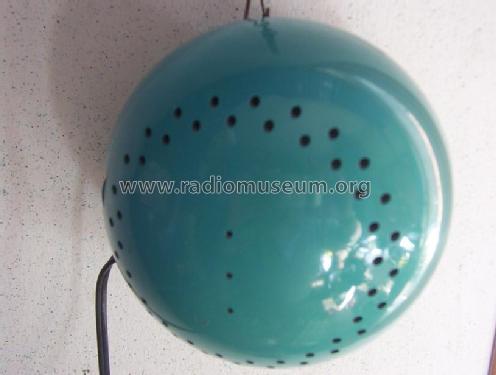

• Radio a forma di palla da 16 cm diametro con supporto da tavolo o gancio per appenderla. Diverse varianti di colore. Monta 7 transistori, 2 diodi raddrizzatori e altri 2 diodi. Alimentabile da rete o con 4 batterie tipo "C" 1,5 V.

• Net weight (2.2 lb = 1 kg)
• 0.730 kg / 1 lb 9.7 oz (1.608 lb)

• Source of data
• Guida Pratica Transistor Radios

• Mentioned in
• Catalogo ANIE (1970-71, p. 48)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
