• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 108873

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCL82 UY85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Lesaphon Giada 50/C - LESA ; Milano

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 365 x 170 x 270 mm / 14.4 x 6.7 x 10.6 inch

• Notes

• Giradischi 4 velocità 16, 33, 45 e 78 giri, con rivelatore equalizzato piezoelettrico e puntine di zaffiro.
  Cartuccia E2.
  Regolatori di volume e di tono.
  Presa per registratore.

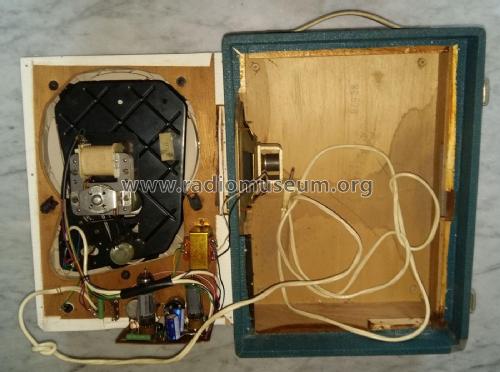

  Come diversi modelli Lesa, il motore del giradischi viene usato come trasformatore di alimentazione.

  Il modello 50/C differisce dal 50/B per l'aggiunta di una presa registratore.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 29,000.00 ITL

• Mentioned in

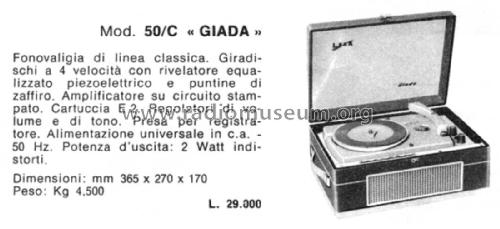

• -- Original prospect or advert

• Literature/Schematics (1)
• - - Manufacturers Literature (La Vetrina N. 3, Novembre 1963)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
