• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1959/1960

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 147616

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AU6 35QL6

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Audio-Amplification; 2 AF stage(s); Export model

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Lecostereo 1/SA - LESA ; Milano

• Shape
• Console with any shape - in general

• Notes

• Lecostereo 1/SA is an amplifier/speaker combination to be used in conjunction with Lesaphon 57/SA for stereophonic reproduction.

  This model is an export version of Lecostereo/1.

  Price net.

  Imported by Lesa of America, 11 West 42 Street, New York.

  SAMS Photofact spells the model name wrongly: it's Lecostereo, not Lecestereo.

• Price in first year of sale
• 63.95 $

• Mentioned in
• -- Original prospect or advert (Stereo magazine, 1960)

• Literature/Schematics (1)

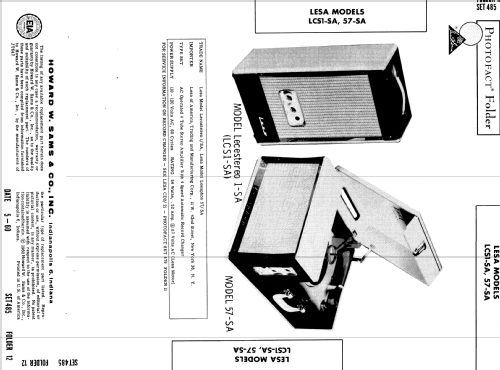

• Photofact Folder, Howard W. SAMS (Set 485 folder 12 date 5-60)

• Literature/Schematics (2)
• -- Original prospect or advert (Audio, August 1959)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
