• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 250794

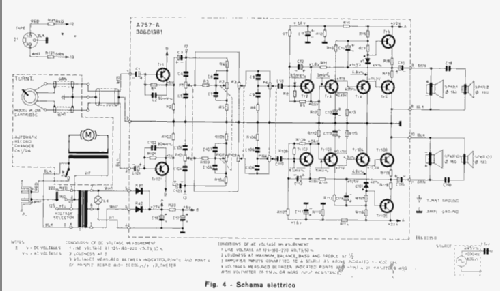

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• SFT337 SFT337 SFT337 SFT337 AC141 AC141 AC137 AC137 AC181 AC181 AC180 AC180

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

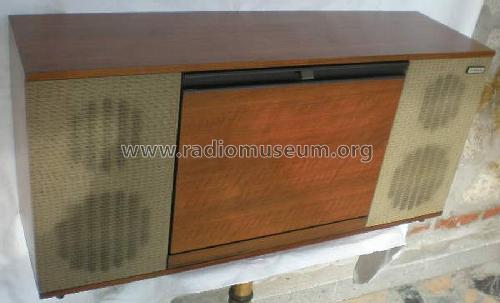

• Model: Lesaphon 680 - LESA ; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 790 x 380 x 225 mm / 31.1 x 15 x 8.9 inch

• Notes

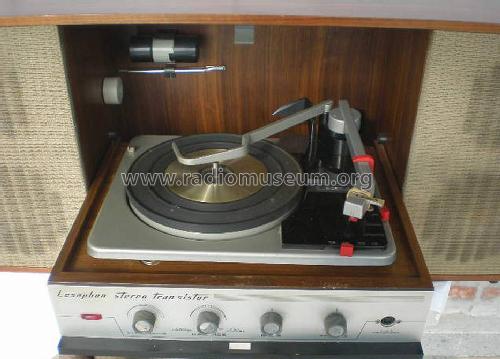

• Giradischi stereo a 4 velocità, con cambia dischi, funzionamento semiautomatico e automatico con supporto dischi con foro diametro 7 mm e 39 mm.

  Con 4 altoparlanti, 2 con diametro 13 cm, 2 con diametro 20 cm.

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
