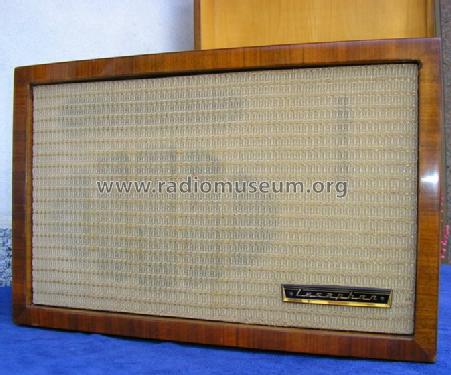

Lesaphon 71/A Ch= CD2/TE

LESA ; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1959–1963
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 116465

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 160; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Lesaphon 71/A Ch= CD2/TE - LESA ; Milano
  • Shape
  • Console, Highboy (legs > 50 %).
  • Dimensions (WHD)
  • 465 x 525 x 225 mm / 18.3 x 20.7 x 8.9 inch
  • Notes

  • Cambiadischi automatico 4 velocità mod. Cadis CD2/TE, in mobile di legno prediato con gambe smaltate in nero.
    Testina TE.

    Possibilità di audizione stereofonica con testina stereo TS, impegiando cassa supplementare amplificata Lecostereo/3 (in legno) o Lecostereo/2.

  • Net weight (2.2 lb = 1 kg)
  • 17.4 kg / 38 lb 5.2 oz (38.326 lb)
  • Price in first year of sale
  • 89,000.00 LIT
  • Mentioned in
  • - - Manufacturers Literature (Manuale Lecostereo/2, 1959)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (La Vetrina N. 3, Novembre 1963)
  • Literature/Schematics (2)
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
