• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1967 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 197879

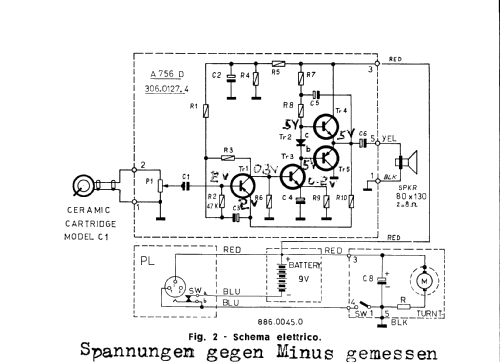

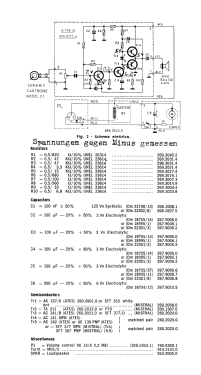

Click on the schematic thumbnail to request the schematic as a free document.

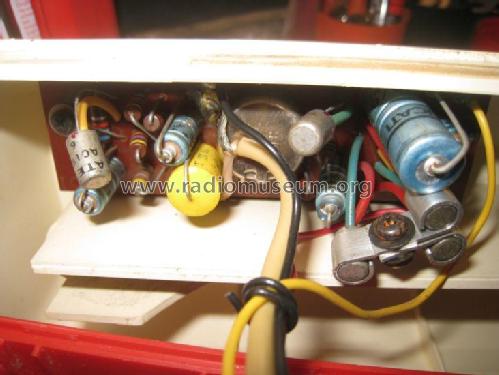

• Number of Transistors
• 4

• Semiconductors

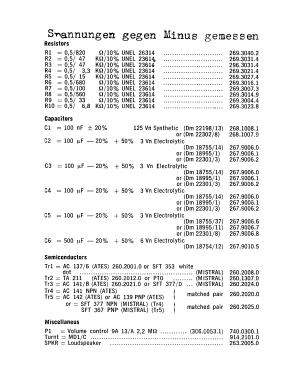

• AC137 or. SFT353 AC141 or. SFT377 AC141 AC142 or. AC139 TA211

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage

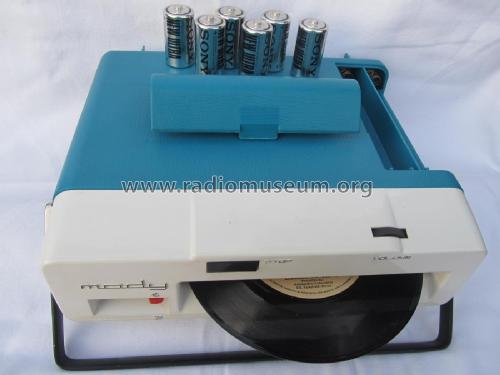

• Batteries / addl. power jack / C: 6 x 1,5 / DC 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

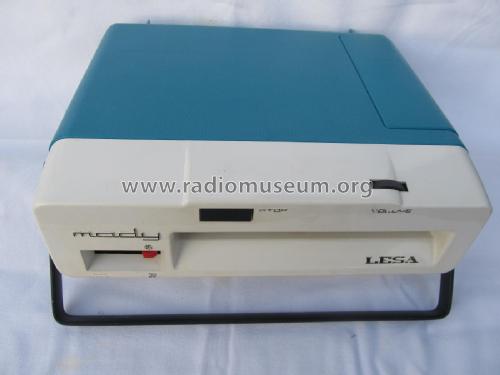

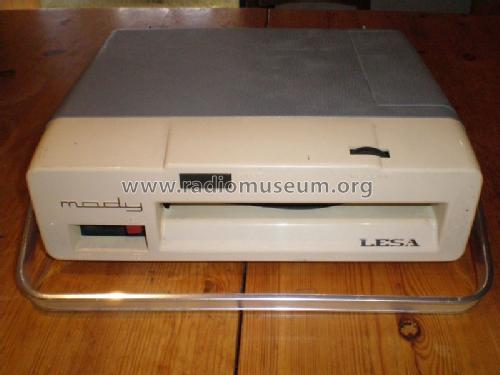

• Model: Mady 1 - LESA ; Milano

• Shape

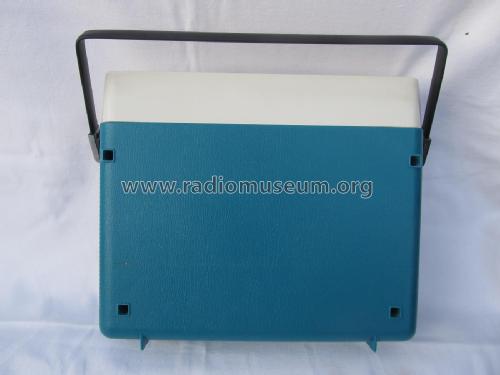

• Portable set > 8 inch (also usable without mains)

• Notes

• Mangiadischi 33-45 giri.

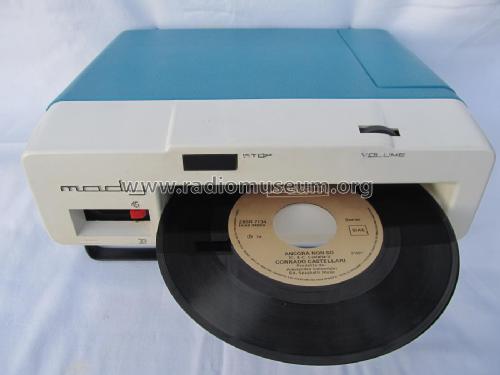

  Portable record player, 33/45 RPMs.

  Possibilità di alimentazione di rete per mezzo dell'alimentatore AL-9.

  ---

  Alternative transistors in output stage: SFT377 and SFT376

• Literature/Schematics (1)

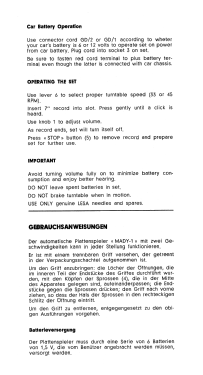

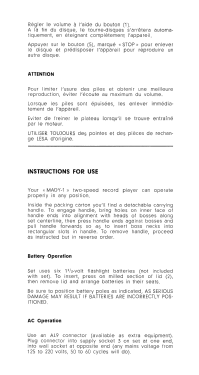

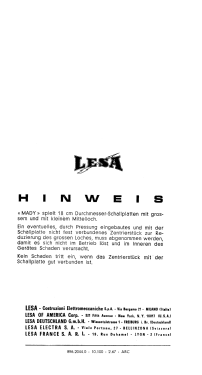

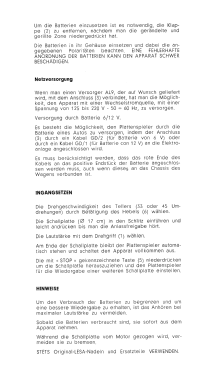

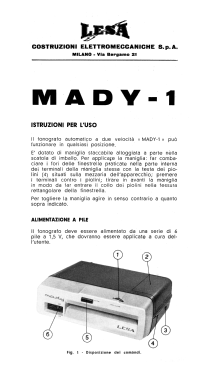

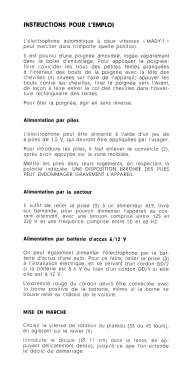

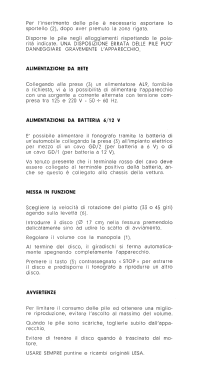

• -- Original-techn. papers. (Instructions, dated 2.67)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
