Radiorenas PR2 F LR14

LESA ; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 286826

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Radiorenas PR2 F LR14 - LESA ; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 310 x 170 x 370 mm / 12.2 x 6.7 x 14.6 inch
  • Notes

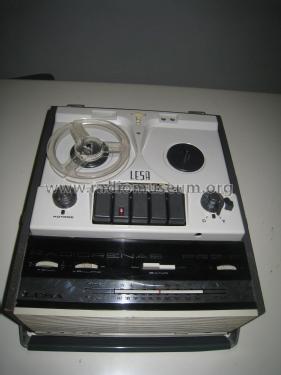

  • LESA Radirenas PR2 F - riproduttore/registratore a bobina - tasti play/stop/rec/ff.ww/rew - commutatore radio/aux - controllo volume/tono - commutatore AM/FM - counter 3 cifre - indicatore livello registrazione - maniglia di trasporto - antenna estraibile telescopica -

    Made in Italy

  • Net weight (2.2 lb = 1 kg)
  • 8.6 kg / 18 lb 15.1 oz (18.943 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
