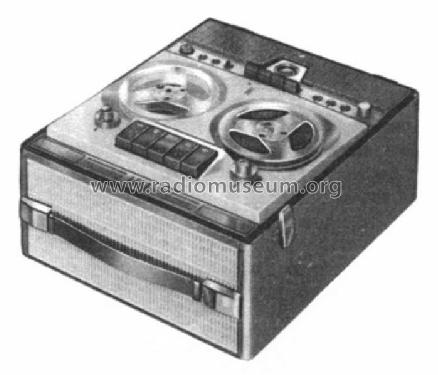

Renas B1

LESA ; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1960–1963 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 330599

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3.5 W (undistorted)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Renas B1 - LESA ; Milano
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 350 x 190 x 415 mm / 13.8 x 7.5 x 16.3 inch
  • Notes

  • 3 velocità (2,38 / 4,76 / 9,53 cm/sec).
    Gamma di risposta: de 40 à 14000 Hz
    Tre ingressi: micro, fono, radio
    Due altoparlanti frontali.

    Prezzo in ca. 1963.

  • Net weight (2.2 lb = 1 kg)
  • 11.2 kg / 24 lb 10.7 oz (24.67 lb)
  • Price in first year of sale
  • 99,000.00 ITL
  • Mentioned in
  • -- Original prospect or advert (Advertisement ca. 1963/1964)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (La Vetrina, N. 3, Novembre 1963)
