• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1963/1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114318

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL82 EM87

• Number of Transistors

• Semiconductors
• OA81 B250C90

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

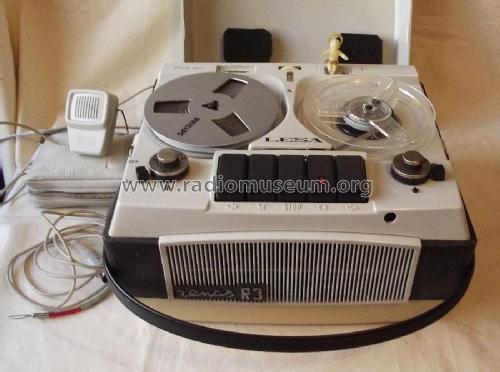

• Model: Renas R3 - LESA ; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 315 x 185 x 270 mm / 12.4 x 7.3 x 10.6 inch

• Notes

• Registratore a nastro. 2 tracce. Diametro massimo delle bobine 12,7 cm (5 "). Prese per cuffie ed altoparlante esterno. Contagiri meccanico a 3 cifre.

  Fornito di borsetta a corredo contenente:

  1. Microfono piezoelettrico EMA  5B
  2. Cavetto di modulazione mod.  ES1
  3. Cavo di alimentazione dedicato.

  Telaio RT6.
  Vedi anche modello Renas R3 (LR5).

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Price in first year of sale
• 71,500.00 ITL

• Mentioned in

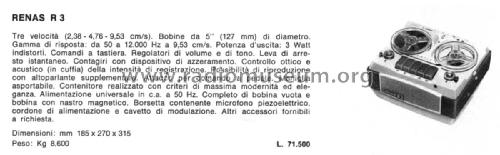

• - - Manufacturers Literature (La Vetrina N. 3 / Novembre 1963, N. 5 / Dicembre 1964)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
