• Country
• United States of America (USA)

• Manufacturer / Brand
• Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York

• Year
• 1927 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46167

• • alternative name: Experimenters Information Service || Norden-Hauck

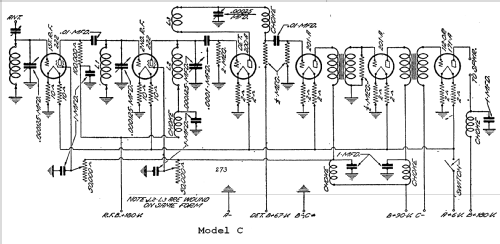

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 222 222 200A 201A 201A 112 or 171A

• Main principle
• TRF with regeneration; Screengrid 1926-1935

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: C [Screen grid TRF] - Leutz, C.R., Inc.Golden-Leutz,

• Notes
• Not to be confused with the earlier Superhet C (1923). Possibly identical with a Plio 6.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Other Models

• Here you find 74 models, 37 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Leutz, C.R., Inc.(Golden-Leutz, Norden-Hauck); Altoona (PA) later New York
