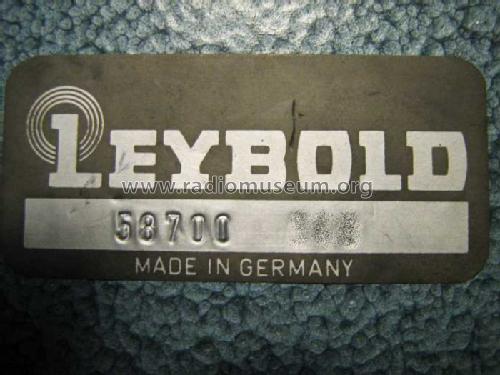

RC-Oszillator 58700 30-250'000 Hz

Leybold; Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1963/1964
  • Category
  • Teaching aids-material
  • Radiomuseum.org ID
  • 280507

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Power out
  • 3 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RC-Oszillator 58700 [30-250'000 Hz] - Leybold; Deutschland
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 170 x 190 x 220 mm / 6.7 x 7.5 x 8.7 inch
  • Notes

  • Laborgerät für Schulen. Frequenzgenerator  30 - 250 000 Hz Sinus, in vier Stufen schaltbar, mit stufenlosem Abschwächer.

    Siehe auch das Nachfolgemodell mit Frequenzbereich 30 Hz - 300 kHz.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • - - Manufacturers Literature (Leybold-Katalog 1964)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
