• Country
• Germany

• Manufacturer / Brand
• Leybold; Deutschland

• Year
• 1977 ?

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 114456

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

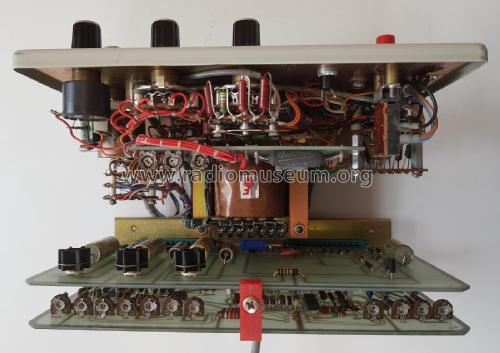

• Model: Kennlinien-Schreiber 57536 - Leybold; Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 240 x 180 x 177 mm / 9.4 x 7.1 x 7 inch

• Notes
• Dient in Verbindung mit einem Oszilloskop zur Aufname der Kennlinien von Zweipolen und Vierpolen.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by a member from D. See "Data change" for further contributors.
