Messbereichs-Schaltkasten 44274
Leybold; Deutschland
- Country
- Germany
- Manufacturer / Brand
- Leybold; Deutschland
- Year
- 1964
- Category
- Teaching aids-material
- Radiomuseum.org ID
- 322483

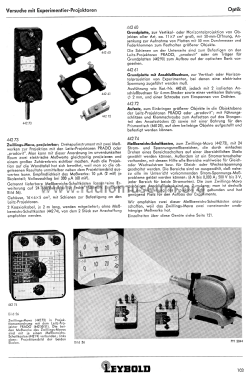

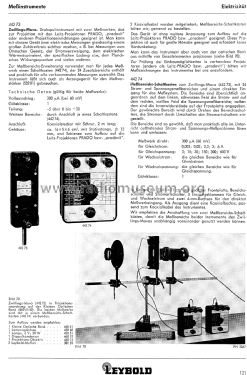

Leybold-Katalog, 1964
Leybold-Katalog, 1964
Leybold-Katalog, 1964
Leybold-Katalog, 1964
Leybold-Katalog, 1964
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Messbereichs-Schaltkasten 44274 - Leybold; Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 110 x 50 x 130 mm / 4.3 x 2 x 5.1 inch
- Notes
-
Messbereichs-Schaltkasten 44274 (Hersteller: Gossen)
Messbereichserweiterung für das Zwillings-Mavo 44273.
Messwerk direkt: 300 µA, 60 mV
Gleich- und Wechselstrom: 0,003; 0,03; 0,3; 3; 6 A
Gleich- und Wechselspannung: 3; 15; 30; 150; 300; 600 V
- Price in first year of sale
- 250.00 DM
- Mentioned in
- - - Manufacturers Literature (Leybold-Katalog, 1964)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
