• Country
• Germany

• Manufacturer / Brand
• Leybold; Deutschland

• Year
• 1954–1964

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 323876

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EL11

• Power type and voltage
• Powered by external power supply or a main unit.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Röhrenbrett EL11 586 11 - Leybold; Deutschland

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 210 x 300 x 15 mm / 8.3 x 11.8 x 0.6 inch

• Notes

• Röhrenbrett für Demonstrationsversuche zur Diode und Triode sowie zum Aufbau von Schwingkreisen mit Rückkopplung.

• Price in first year of sale
• 38.00 DM

• Mentioned in

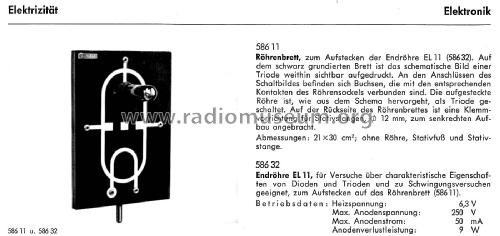

• - - Manufacturers Literature (Leybold-Katalog 1964)

• Author
• Model page created by Konstantin Kalthof. See "Data change" for further contributors.

• Other Models

• Here you find 55 models, 55 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
