Musikschrank Rio NN Stereo Ch= Grundig 1203L Stereo
Liesenkötter, Westfalen Tonmöbelwerk; Saerbeck/Westfalen
- Country
- Germany
- Manufacturer / Brand
- Liesenkötter, Westfalen Tonmöbelwerk; Saerbeck/Westfalen
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248130
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C100
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Musikschrank Rio NN Stereo Ch= Grundig 1203L Stereo - Liesenkötter, Westfalen
- Shape

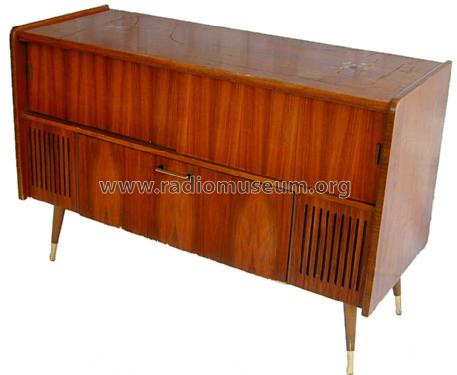

- Console with Push Buttons.
- Dimensions (WHD)
- 1095 x 725 x 400 mm / 43.1 x 28.5 x 15.7 inch
- Notes
-
DIN-Buchsen für Tonbandgerät und Tonabnehmer. Nur NF-Stereo. Buchsen für zwei Außenlautsprecher.

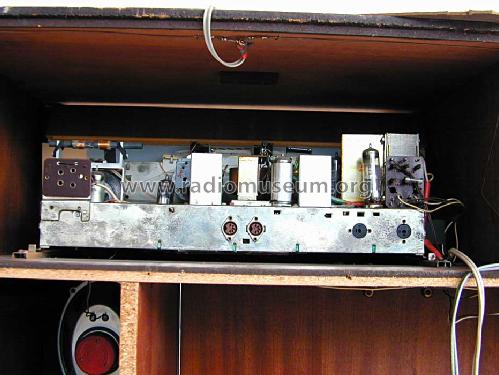

Radio-Chassis: Grundig Konzertgerät 1203 L Stereo
Phono-Chassis: PE 66
Unteres Fach zur Aufnahme eines Tonbandgerätes.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
