Elektronik-Experimentier-System Mykit MX-180
LINDY-Elektronik GmbH; Mannheim
- Country
- Germany
- Manufacturer / Brand
- LINDY-Elektronik GmbH; Mannheim
- Year
- 1975 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 253416
-
- Brand: Lindenberg Industrievertretung
- Number of Transistors
- 2
- Semiconductors
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Elektronik-Experimentier-System Mykit MX-180 - LINDY-Elektronik GmbH;
- Shape
- Book-shelf unit.
- Notes
-

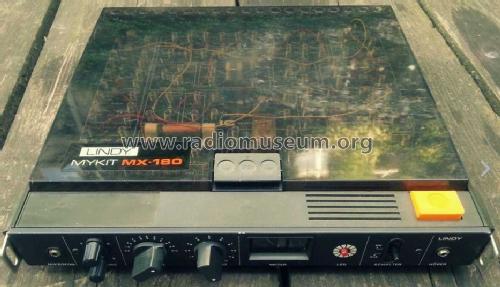

Gehäuse in Flachbauweise, Bedienungselemente und Anzeigen auf der schmalen Frontseite. Unter dem transparenten Deckel befinden sich die Bauteile und Anschlüsse für die Front-Elemente.
Halbleiter-Bestückung: 2 NPN-Transistoren (2SC...), 1 IC (NF-Verstärker), 7-Segment-Anzeige, LED.
- Author
- Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
