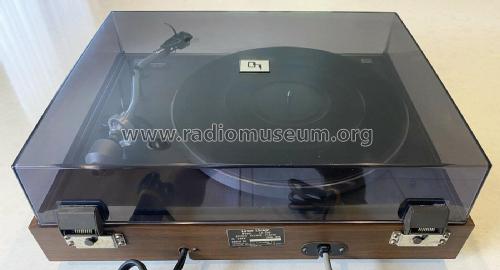

Stereo Record Player LD-500

Linear Design (brand), BJD (B.J.D.) Electronics (Douglas Hi-Fi); Melbourne

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 336178

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Record Player LD-500 - Linear Design brand, BJD B.J.D
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 17.1875 x 6.4375 x 14.09375 inch / 437 x 164 x 358 mm
  • Notes

  • SPECIFICATIONS

    MOTOR AND TURNTABLE
    Drive System: Belt-drive system
    Drive Motor: 4-pole synchronous motor
    Speeds: 33-1/3 and 45 rpm
    Platter: 12-inch (30cm) diameter die-cast aluminium alloy
    Wow & Flutter: Less than 0.06%
    Signal-to-Noise Ratio: Better than 52dB

    TONEARM
    Type: Statically-balanced S-shaped tubular arm with tracking force dial of 0.1-gram steps
    Effective Arm Length: 220mm
    Overhang: 15mm
    Applicable Tracking Force Range: 0 to 3 grams

    FEATURES
    Tonearm lifter, Auto-return mechanism, removable dust cover, anti-skating device, etc.

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 15.4 lb (15 lb 6.4 oz) / 6.992 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Instruction book.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
