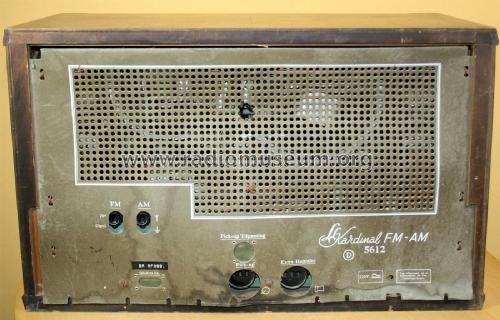

Kardinal FM-AM 5612
Linnet & Laursen (LL) A/S; København
- Country
- Denmark
- Manufacturer / Brand
- Linnet & Laursen (LL) A/S; København
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 274938

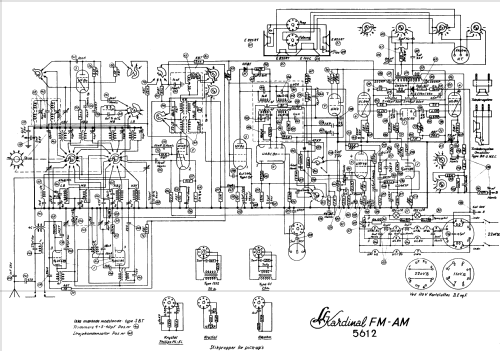

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- Semiconductors
- OA81
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- AC/DC-set / 110; 220 Volt

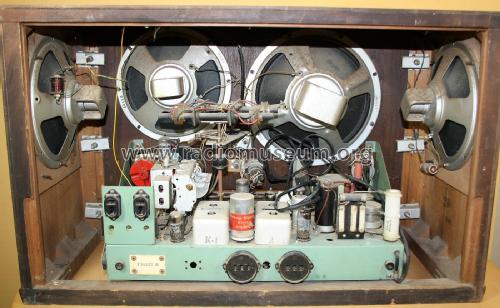

- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Kardinal FM-AM 5612 - Linnet & Laursen LL A/S;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 680 x 420 x 310 mm / 26.8 x 16.5 x 12.2 inch
- Notes
-

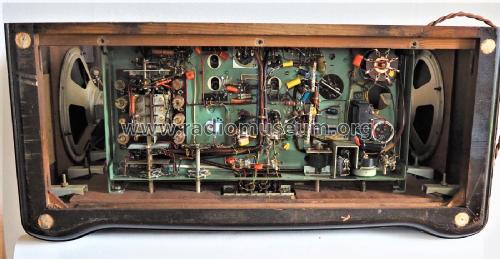

Schwungradantrieb. Drehbare Ferritantenne mit HF-Vorstufe. Gegentakt-Endstufe.
Tonabnehmer-Eingang durch steckbare Anpassungsnetzwerke oder Übertrager für Kristall- oder magnetische/dynamische Abtastsysteme (Pick-up) verwendbar.
Ähnlich wie Linnet Kardinal FM-AM 5611.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
