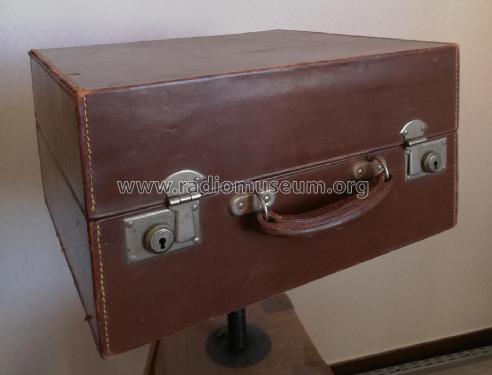

Lissenola 5 valve portable

Lissen Ltd.; London and Richmond, Surrey

Data
Forum
Pictures
Collections

  • Year
  • 1929 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223498

 Technical Specifications

  • Number of Tubes
  • 5
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 9 & 100 Volt
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic. / Ø 30 cm = 11.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Lissenola 5 valve portable - Lissen Ltd.; London and
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 410 x 210 x 380 mm / 16.1 x 8.3 x 15 inch
  • Notes

  • The "Lissenola”

    For modest purses and the men who prefer a completely self-contained instrument in one box, we have, as a good example, the Lissenola portable,

    Again with five valves, made up of two stages of aperiodic high-frequency, a detector, and two transformer-coupled low-frequency stages. Modern Wireless, Jun 1929, Page  584

    Dry and Accumulator batteries are included in price.

    Note: tubes listed are based on one actual device only.

  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 16.00 GBP
  • Mentioned in
  • -- Original prospect or advert (Modern Wireless, Jun 1929, Page  584)
  • Author
  • Model page created by Michael Watterson. See "Data change" for further contributors.
