Function Generator FG600
LLoyd Instruments; Southampton
- Country
- Great Britain (UK)
- Manufacturer / Brand
- LLoyd Instruments; Southampton
- Year
- 1974 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 281660

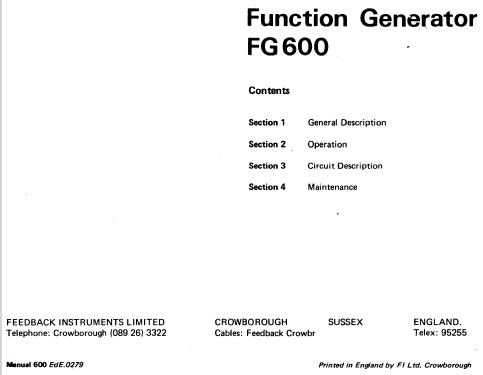

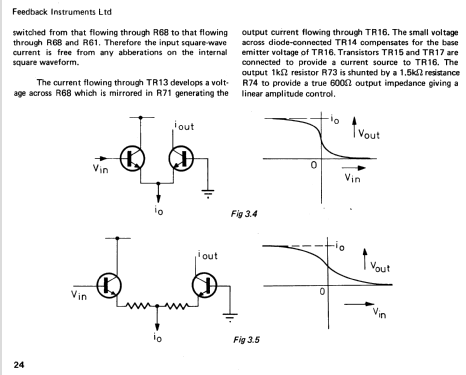

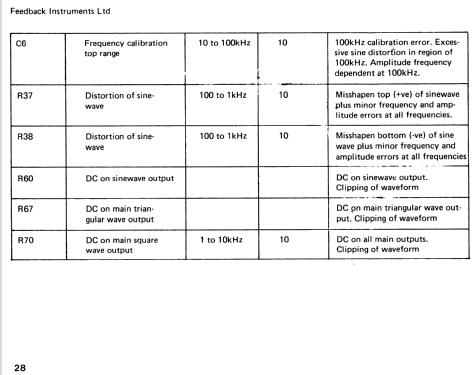

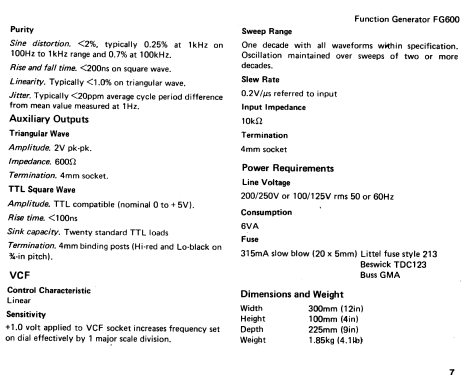

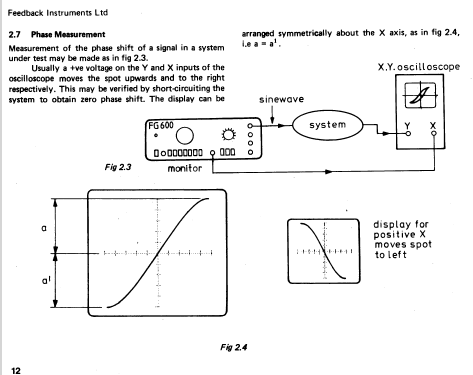

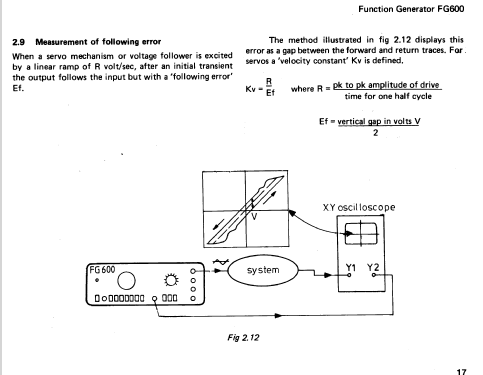

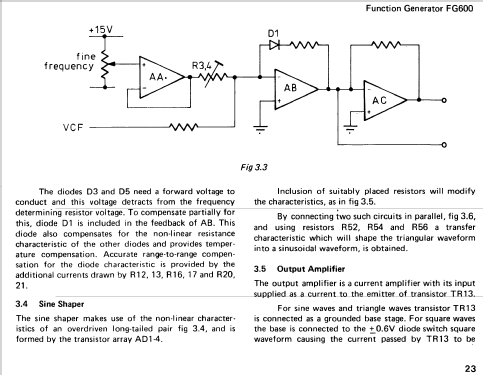

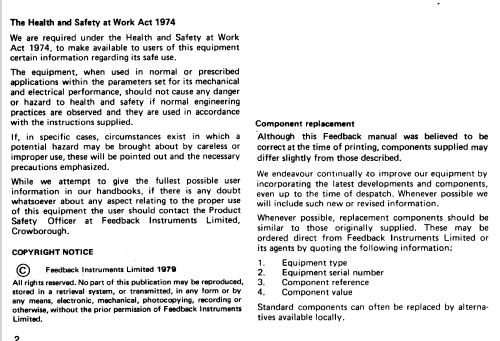

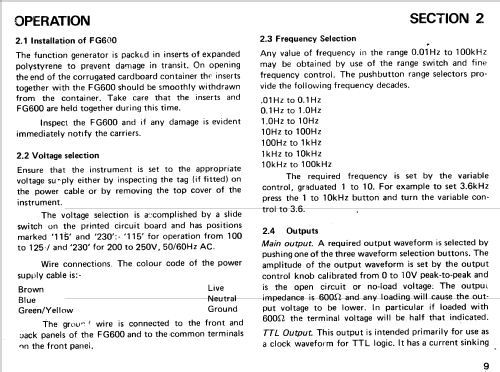

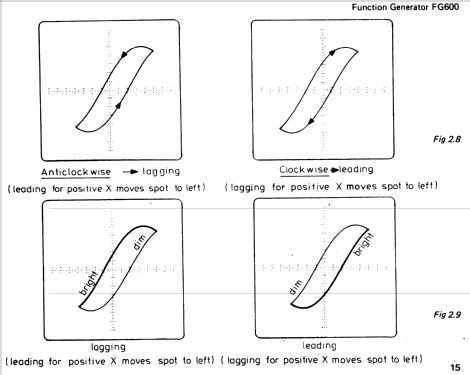

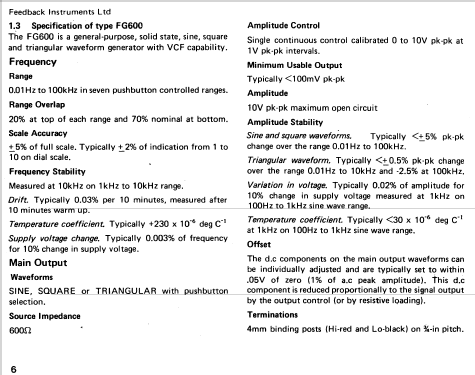

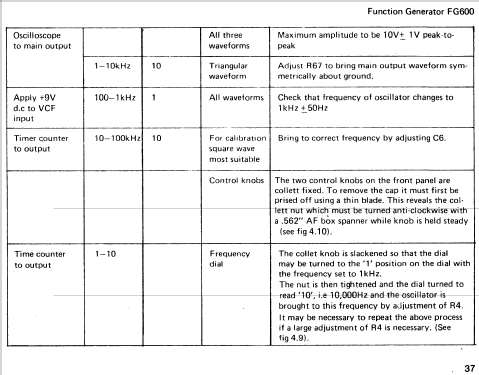

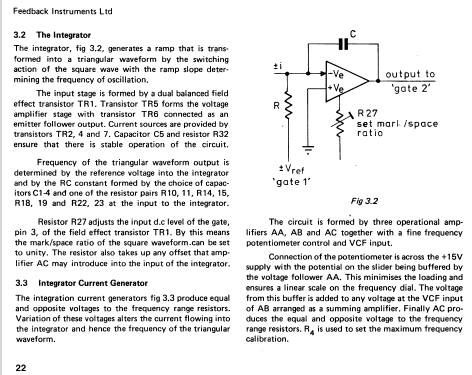

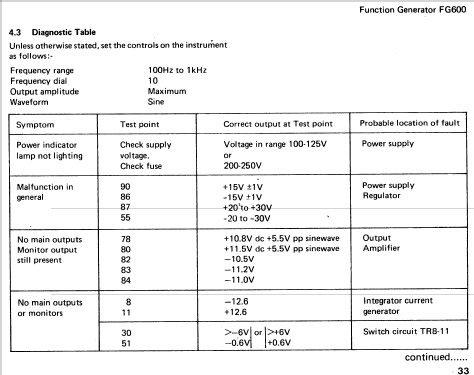

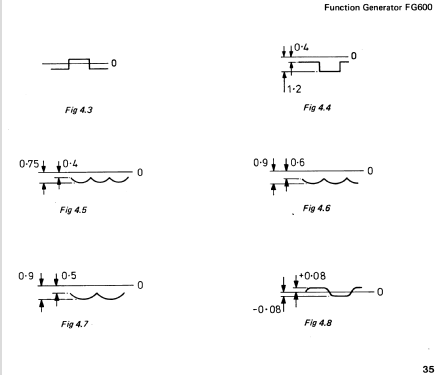

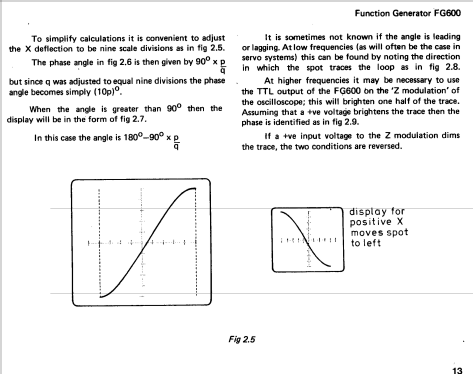

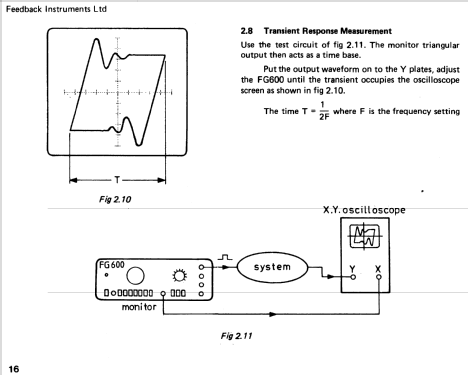

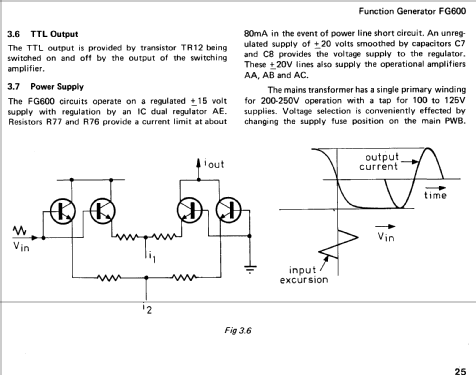

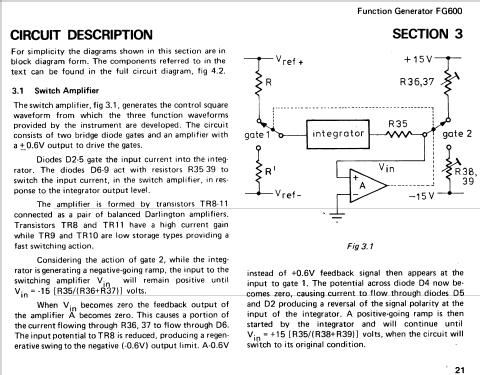

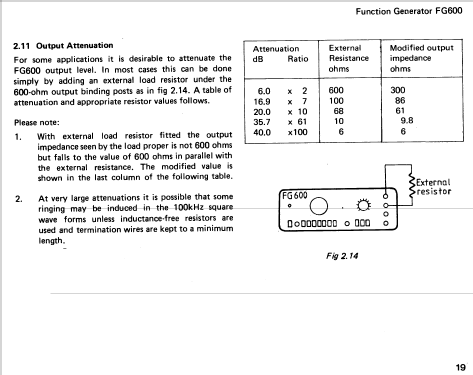

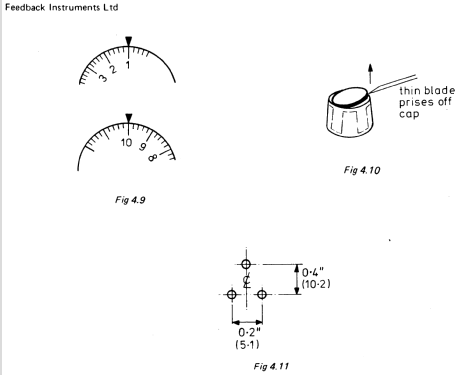

Bild vom Handbuch
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 100; 125; 200; 250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Function Generator FG600 - LLoyd Instruments; Southampton
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 300 x 100 x 225 mm / 11.8 x 3.9 x 8.9 inch
- Notes
-
Funktionsgenerator
Frequnzbereich 0,01Hz- 100kHz in 7 Drucktasten-Bereichen.
Wellenform: Sinus,Rechteck,Dreieck. Impedanz 600Ohm.
Amplitude : 0-10 Vss
- Net weight (2.2 lb = 1 kg)
- 1.850 kg / 4 lb 1.2 oz (4.075 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Rudolf Müller. See "Data change" for further contributors.
