9N24B-37A
Lloyd's Electronics; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Lloyd's Electronics; Chicago, IL
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 131477

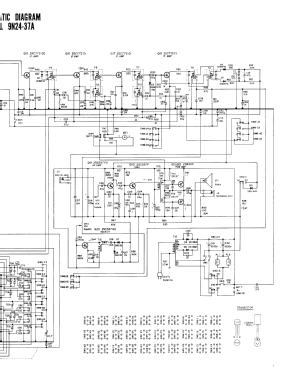

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 220; 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: 9N24B-37A - Lloyd's Electronics; Chicago,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 585 x 375 x 145 mm / 23 x 14.8 x 5.7 inch
- Notes
-

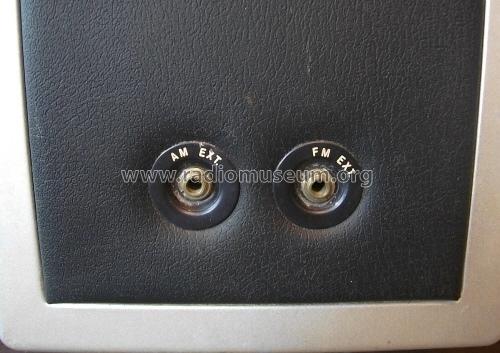

LLoyd's 9N24B-37A. 10 band receiver, SW bands 1.5 bis 30.0 MHz, PCB USA 27 - 180 MHz, Airband 108 - 140 MHz, Long wave 140 - 450 kHz. Front / speaker covered ny aluminum. Switches: battery check , dial lamp, AFC , power on/off; Sockets: headphone , aux-in. Slides: tone , volume; Rotary: Tuning indicator ; Socket at side: AM external antenna , FM external antenna. 2 FM telecopic antenna , fixed handle.
Unit can be found under same model number, but only with 117 volts AC input, not 220/234 volts AC.
- Net weight (2.2 lb = 1 kg)
- 5.9 kg / 12 lb 15.9 oz (12.996 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Rolf Leonhardt. See "Data change" for further contributors.
