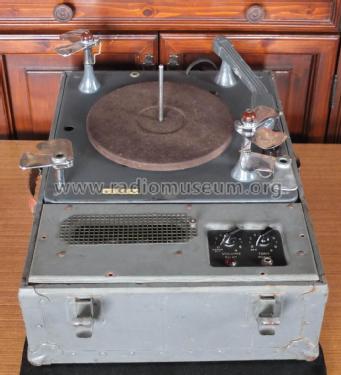

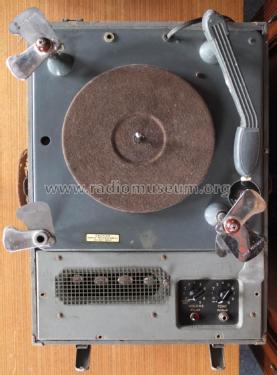

Military Turntable SRC-1
L. M. Sandwick Associates, Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- L. M. Sandwick Associates, Chicago
- Year
- 1944/1945
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 307736
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Military Turntable SRC-1 - L. M. Sandwick Associates,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 540 x 300 x 490 mm / 21.3 x 11.8 x 19.3 inch
- Net weight (2.2 lb = 1 kg)
- 20.2 kg / 44 lb 7.9 oz (44.493 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
