ST245 22081
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1969–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27731
-
- alternative name: Löwe Radio

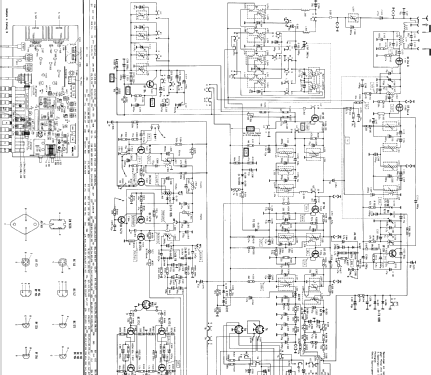

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 35
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: ST245 22081 - Loewe-Opta; Deutschland
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 540 x 135 x 235 mm / 21.3 x 5.3 x 9.3 inch
- Notes
- HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 25 W (Sinus).
Gehäuse: Nussbaum, natur mattiert oder Palisander oder Schleiflack, weiss.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1969/1970
