• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127238

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UCH5 UBL3 AZ1

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• from Radiomuseum.org

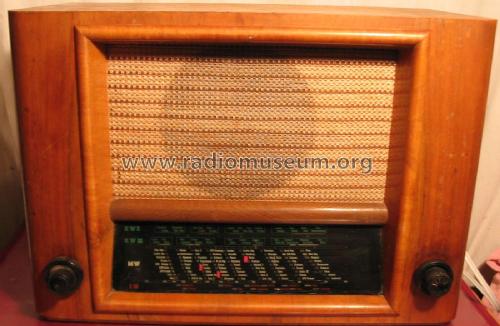

• Model: 648 W [U-Röhren] - Loewe-Opta; Deutschland

• Shape
• Tablemodel, low profile (big size).

• Notes
• Achtung: Spartrafo! Keine Netztrennung!
  Bandbreite regelbar, gekoppelt mit Tonschalter.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
