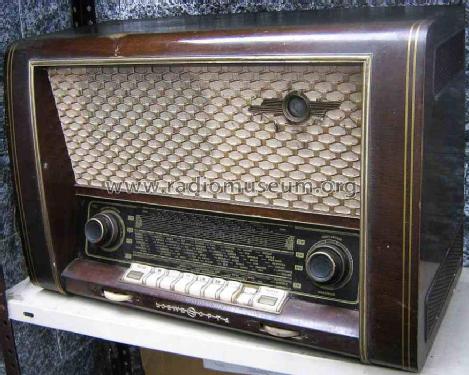

Apollo Plastik 761W

• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20214

• • alternative name: Löwe Radio

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM34 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 150, 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Apollo Plastik 761W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 380 x 280 mm / 22.8 x 15 x 11 inch

• Notes

• Fortschalttaste für Normal-/3D-Tonwiedergabe. Bandbreite schaltbar.
  Im VDRG-Handbuch 1955/56 ohne den Zusatz "Plastik" geführt.

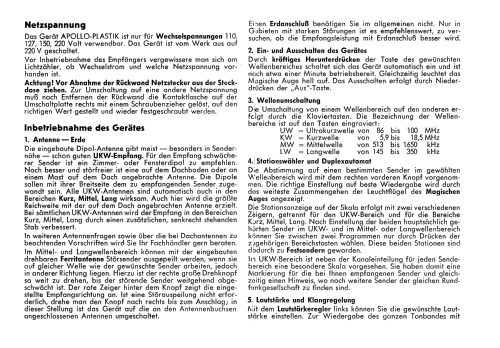

  Die Bedienungsanleitung gibt anstatt einer EF 85 eine EF 89 an.

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Price in first year of sale
• 309.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Literature/Schematics (1)
• -- Schematic
