Arosa Luxus 83173
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1966–1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 26989
-
- alternative name: Löwe Radio

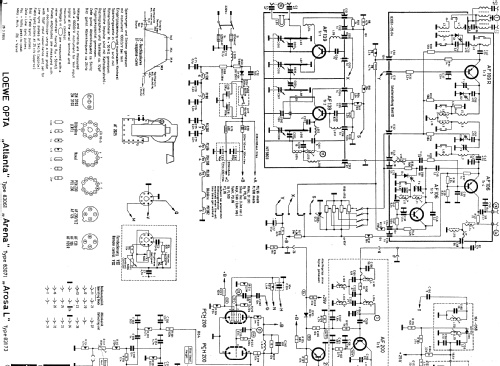

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arosa Luxus 83173 - Loewe-Opta; Deutschland
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1000 x 935 x 365 mm / 39.4 x 36.8 x 14.4 inch
- Notes
- VHF/UHF. Technische Daten ähnlich Atlanta 83061, jedoch Standgerät mit abschließbaren Jalousien.
- Net weight (2.2 lb = 1 kg)
- 46 kg / 101 lb 5.1 oz (101.322 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
- Other Models
-
Here you find 1629 models, 1368 with images and 1183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Loewe-(Opta); Deutschland
Literature
The model Arosa Luxus is documented in the following literature.
