Astoria-Stereo 2666
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1959/1960
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 101374
-
- alternative name: Löwe Radio

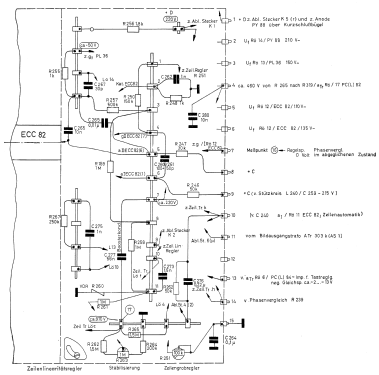

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer + Tape Recorder; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

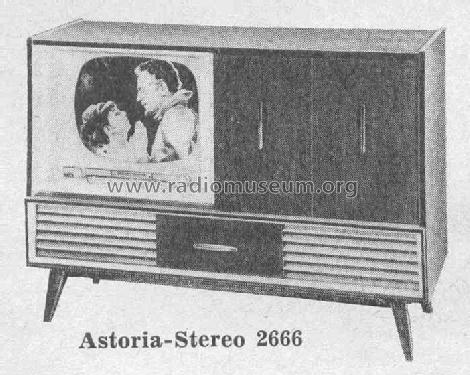

- Model: Astoria-Stereo 2666 - Loewe-Opta; Deutschland
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1610 x 960 x 480 mm / 63.4 x 37.8 x 18.9 inch
- Notes
- Fernseh-Chassis = Arena SL666 ;
Rundfunk-Spezialchassis, 9 Röhren, 6/12 Kreise, LM2KU, Zweikanal-Stereo-Verstärker;
Phono-Chassis = Dual 1006;
Tonband-Chassis (Mehrpreis 399,- DM) = Optacord 400.
- Net weight (2.2 lb = 1 kg)
- 90 kg / 198 lb 3.8 oz (198.238 lb)
- Price in first year of sale
- 2,198.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
