Atos P 44055
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1962/1963 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 359638
-
- alternative name: Löwe Radio

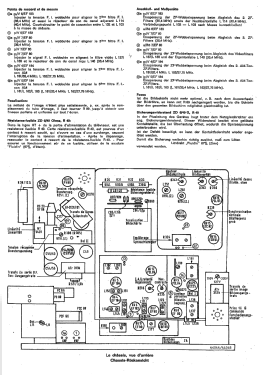

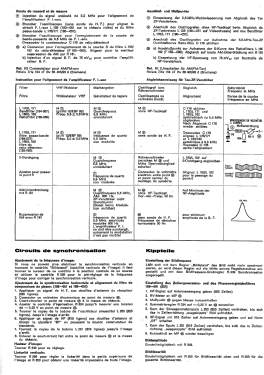

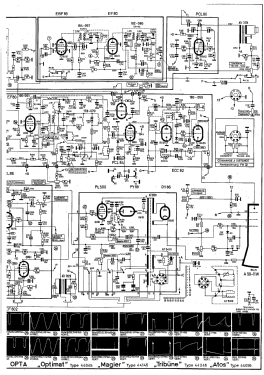

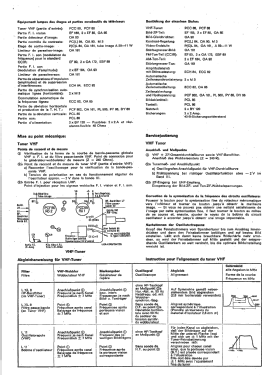

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PC88 PC86 PCC88 PCF86 EF183 EF80 PCL84 EBF89 EF184 ECH84 ECC82 PCF802 PL500 PY88 DY86 PCL85 PCL86 A59-11W
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Atos P 44055 - Loewe-Opta; Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 690 x 490 x 440 mm / 27.2 x 19.3 x 17.3 inch
- Notes
-
Loewe Opta 5-Normen Fernseh-Empfänger - Téléviseur Multistandard Atos 44055
Jeder Röhren- und Halbleitertyp ist einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 37 kg / 81 lb 8 oz (81.498 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Thierry Oget. See "Data change" for further contributors.
