Bella 3710W
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21707
-
- alternative name: Löwe Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

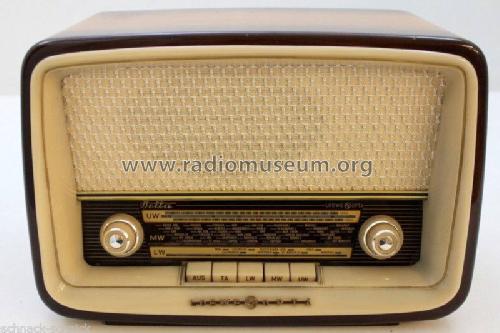

- Model: Bella 3710W - Loewe-Opta; Deutschland
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 330 x 225 x 175 mm / 13 x 8.9 x 6.9 inch
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 205.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Other Models
-
Here you find 1629 models, 1368 with images and 1183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Loewe-(Opta); Deutschland
Collections
The model Bella is part of the collections of the following members.
Museums
The model Bella can be seen in the following museums.
Forum contributions about this model: Loewe-Opta;: Bella 3710W
Threads: 1 | Posts: 4
Kann jemand den Verlauf des Skalenseils hochladen ? Darüber würde ich mich freuen.
Ottmar Lauth, 19.Apr.16
