• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1961 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73671

• • alternative name: Löwe Radio

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF89 EF83 EL84 EM84

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110;130;150;220;240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

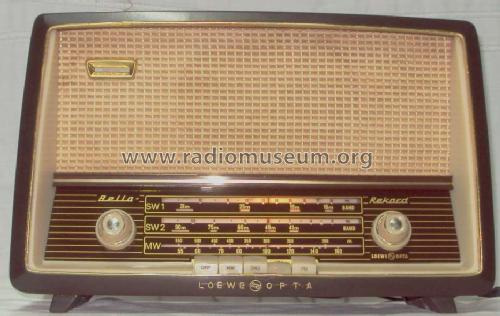

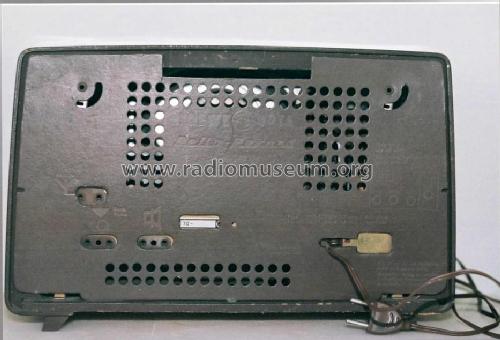

• Model: Bella Rekord 712W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 430 x 260 x 180 mm / 16.9 x 10.2 x 7.1 inch

• Notes
• The Bella Rekord 712W is an export model for South America. We are looking for a schematic which can only be found there!

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
