• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21360

• • alternative name: Löwe Radio

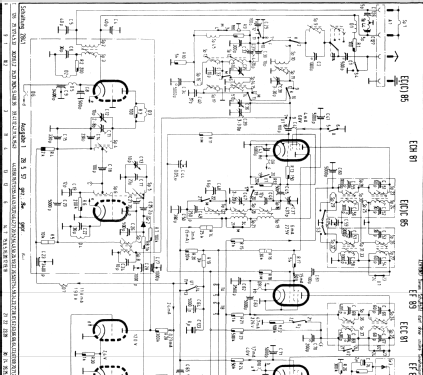

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EM84 ECC83 ECC81 EL95 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 11 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Botschafter 2930T - Loewe-Opta; Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1300 x 860 x 450 mm / 51.2 x 33.9 x 17.7 inch

• Notes
• Phono-Chassis = Dual 1005;
  Tonband-Chassis (Mehrpreis 429,- DM) = Optacord 400.

• Net weight (2.2 lb = 1 kg)
• 67 kg / 147 lb 9.2 oz (147.577 lb)

• Price in first year of sale
• 1,298.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58
