• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142349

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

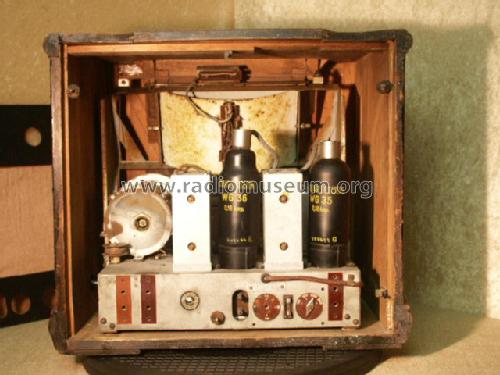

• Valves / Tubes
• WG36 WG35 U936 optional 26NG

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Botschafter GW [Export] - Loewe-Opta; Deutschland

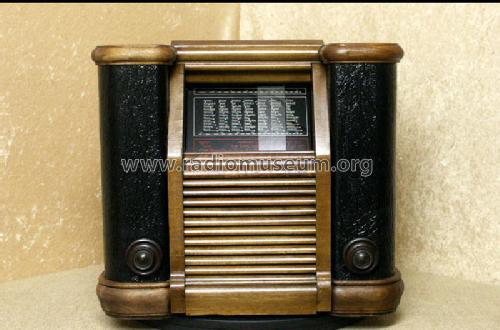

• Shape
• Tablemodel, low profile (big size).

• Notes
• Andere Gehäuseform als Loewe Botschafter GW im Holzgehäuse. Mit grünem Kunstleder bespannt.

• Source of data
• Historische Radios Band III

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
