• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21880

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EC92 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details

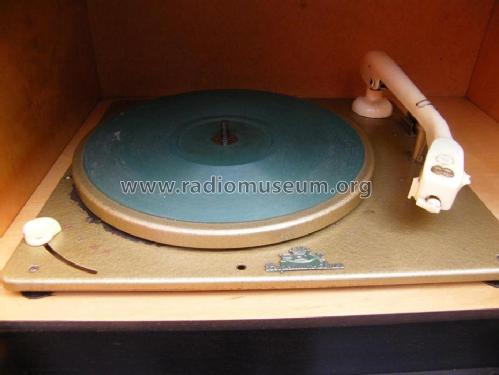

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clivia-Stereo 3805T/W - Loewe-Opta; Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1020 x 830 x 440 mm / 40.2 x 32.7 x 17.3 inch

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Price in first year of sale
• 698.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Other Models
