Hermes 4752W

• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22120

• • alternative name: Löwe Radio

• Picture

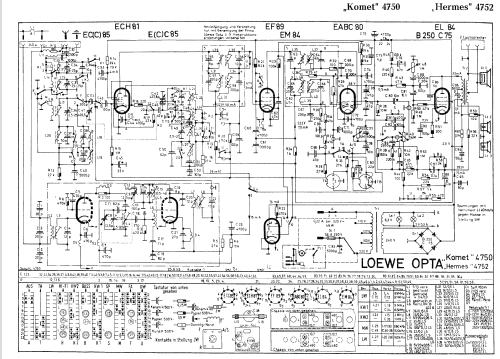

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hermes 4752W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 580 x 360 x 260 mm / 22.8 x 14.2 x 10.2 inch

• Notes

• Loewe Opta Hermes 4752 hat eine fest eingebaute Ferrit-Antenne. Obenliegende Skala. Technisch wie Komet 4750 (3 Lautsprecher).

  • KW1 = 8.8 - 18.7 MHz
  • KW2 = 2.8 - 9.3 MHz

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 319.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• Handbuch RFP 1959/60 (Thiele)

• Literature/Schematics (1)
• -- Schematic
