• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2768

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF42 ECH81 EAF42 EF41 EM4 EB41 EL41 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

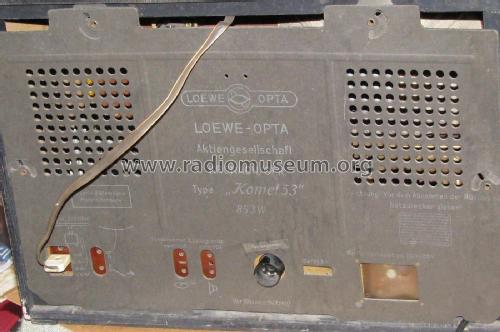

• Model: Komet 53 853W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 525 x 360 x 280 mm / 20.7 x 14.2 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 10.8 kg / 23 lb 12.6 oz (23.789 lb)

• Price in first year of sale
• 299.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
