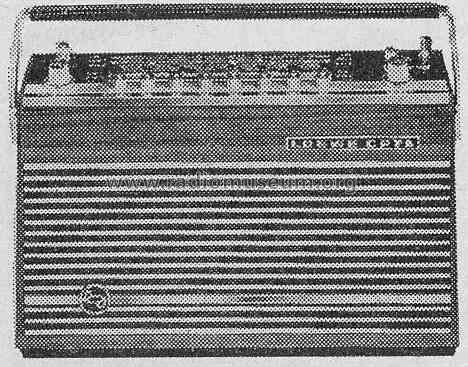

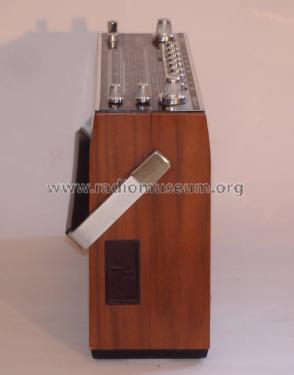

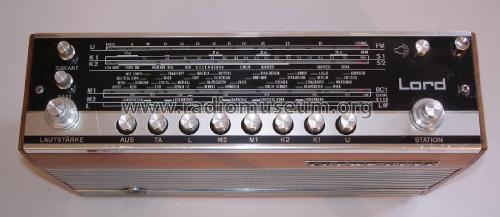

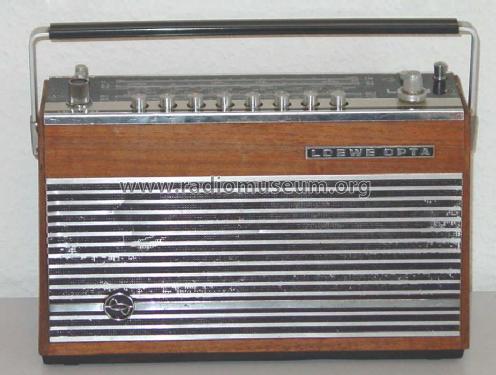

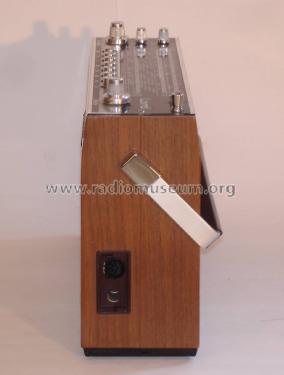

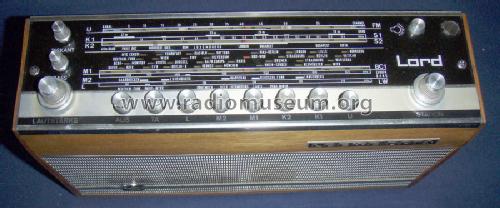

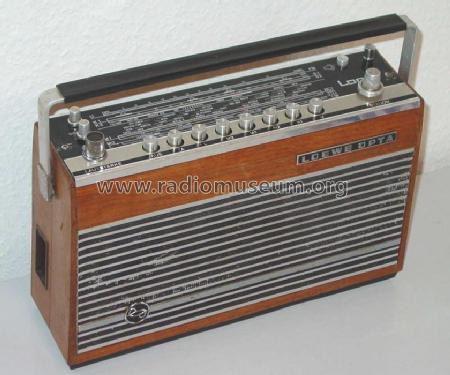

Lord 92369
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127778
-
- alternative name: Löwe Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Lord 92369 - Loewe-Opta; Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 195 x 90 mm / 12.2 x 7.7 x 3.5 inch
- Notes
-
Netzbetrieb mit zusätzlich einsetzbarem Netzteil möglich.
Gehäuse: nussbaum, natur; siehe auch Lord 92368 in perlweiss.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Source of data
- Handbuch VDRG 1968/1969
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
