• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2763

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF42 ECH42 EF41 EAF42 EM4 EB41 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

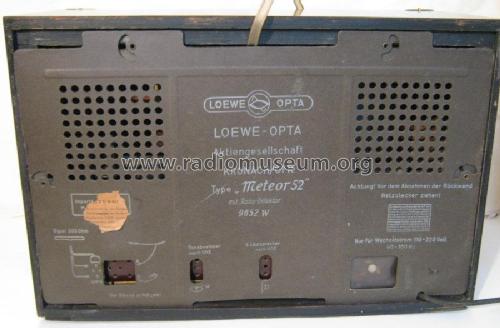

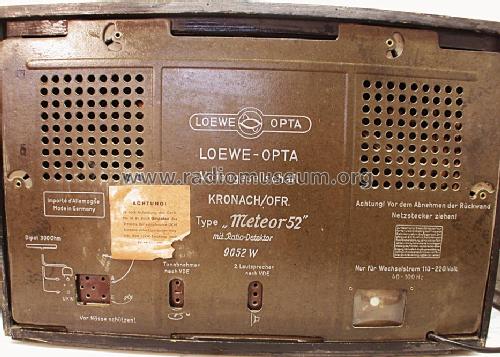

• Model: Meteor 52 9652W - Loewe-Opta; Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 348 x 262 mm / 20.7 x 13.7 x 10.3 inch

• Notes
• Autotrafo, keine Netztrennung !!!

• Net weight (2.2 lb = 1 kg)
• 11.3 kg / 24 lb 14.2 oz (24.89 lb)

• Price in first year of sale
• 328.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
