• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27257

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EMM803 ECL86

• Number of Transistors
• 3

• Semiconductors
• BC108 BC108 BC108

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

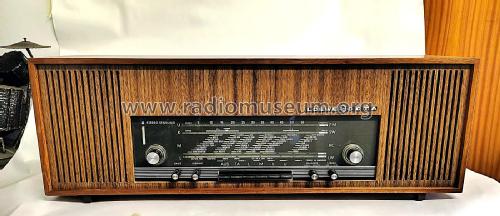

• Model: Meteor-Stereo 67 82051 - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 685 x 220 x 165 mm / 27 x 8.7 x 6.5 inch

• Notes
• Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
  Ohne Stereo-Decoder hat das Gerät die Typenbezeichnung 82050 und keine Transistoren.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967
