• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22049

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

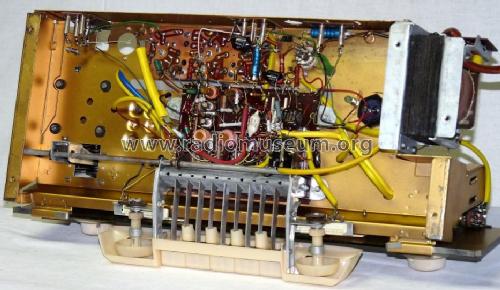

• Model: Moderna 3736W - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 360 x 240 mm / 21.3 x 14.2 x 9.4 inch

• Notes
• 1 Tieftonlautsprecher (oval) 14 x 26 cm; 1 Hochtonlautsprecher 8 x 9 cm. Ferritantenne schaltbar.

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Price in first year of sale
• 309.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
