• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2635

• • alternative name: Löwe Radio

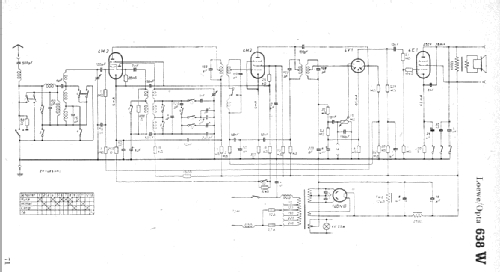

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 4M2 or ACH1 4H2 or AF3 4V1 or ABC1 4E1 or AL4 140NG or AZ1

• Main principle
• Superheterodyne (common); ZF/IF 486 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Opta 638W - Loewe-Opta; Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 340 x 260 mm / 23.6 x 13.4 x 10.2 inch

• Notes

• Bandbreite schaltbar.

• Price in first year of sale
• 245.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Radios von gestern, 1. Auflage

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
