Optalux 43 031 braun
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1963/1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 27866
-
- alternative name: Löwe Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes

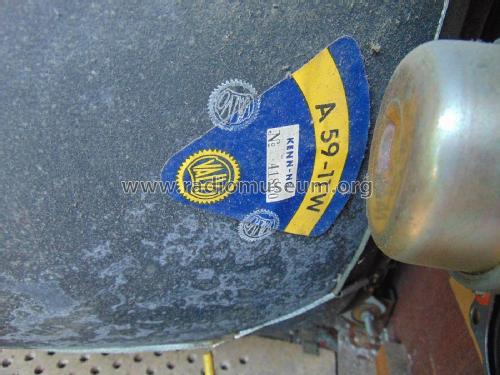

- PCC88 PCF82 EF183 EF80 EF80 PCL84 ECH84 PCL85 PL500 PY88 DY86 EF80 PCL86 PCF802 A59-11W
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Optalux 43 031 [braun] - Loewe-Opta; Deutschland
- Shape

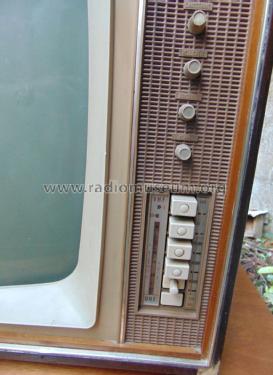

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 680 x 480 x 290 mm / 26.8 x 18.9 x 11.4 inch
- Notes
- VHF/UHF. Im Katalog PY86 statt DY86.
- Net weight (2.2 lb = 1 kg)
- 36 kg / 79 lb 4.7 oz (79.295 lb)
- Price in first year of sale
- 1,028.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1963/1964

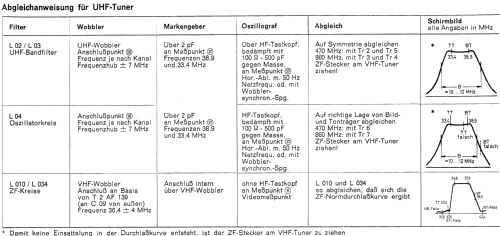

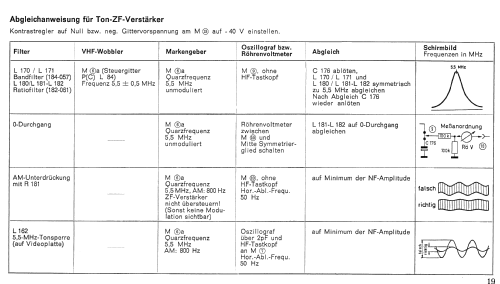

- Literature/Schematics (1)
- -- Original-techn. papers.
