• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1963–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25664

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

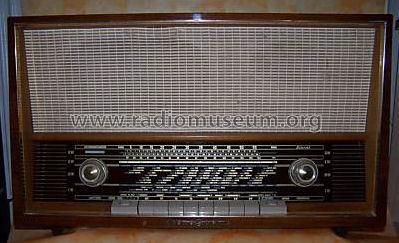

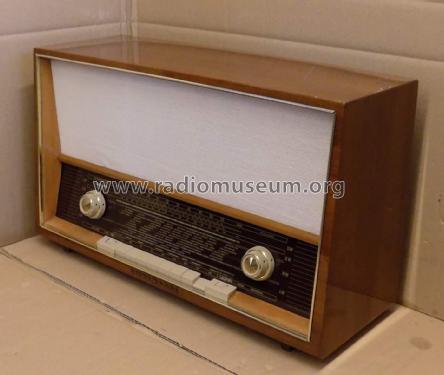

• Model: Planet 42 025 - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 325 x 200 mm / 21.7 x 12.8 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Price in first year of sale
• 359.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
