• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25499

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCH42 UF41 UAF42 UB41 UM4 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

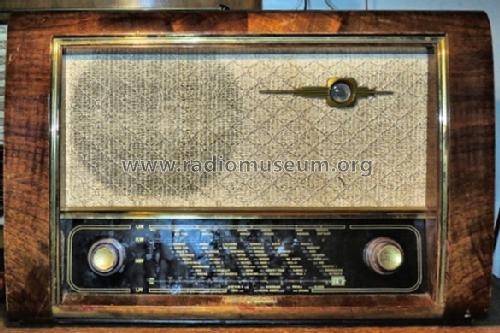

• Model: Planet 52 8652GW - Loewe-Opta; Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 348 x 262 mm / 20.7 x 13.7 x 10.3 inch

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.
