Profisound SDK 905 58231

Loewe-(Opta); Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 330378
    • alternative name: Löwe Radio

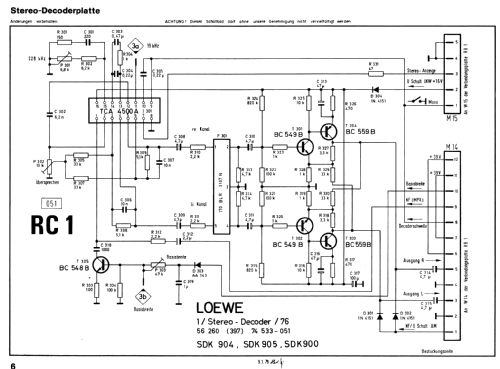

Click on the schematic thumbnail to request the schematic as a free document.

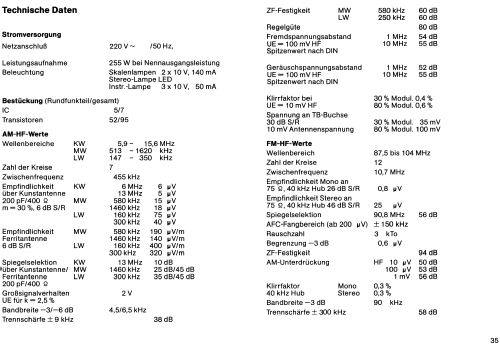

 Technical Specifications

  • Number of Transistors
  • 95
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220; 230; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (140 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Profisound SDK 905 58231 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 825 x 195 x 410 mm / 32.5 x 7.7 x 16.1 inch
  • Notes

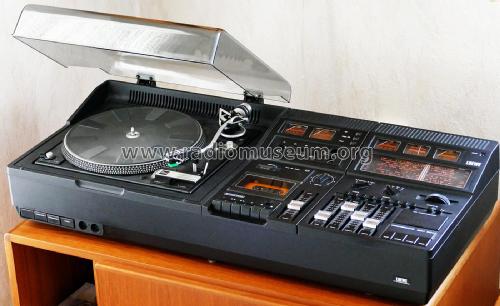

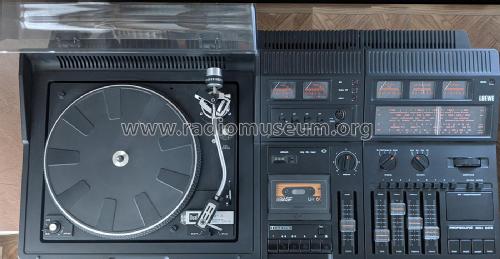

  • HiFi-Stereo-Kompaktanlage mit Quadrosound.

    Wellenbereiche:
    UKW = 87,5 - 104 MHz
    KW = 5,9 - 15,6 MHz
    MW = 513 - 1620 kHz
    LW = 147 - 350 kHz

    Ausgangsleistung: 2 x 50 W (Sinus), 2 x 70 W (Musik), an 4 Ohm
    Phono-Chassis = Dual 491A mit Dual DMS240E Magnet-System
    HiFi-Cassettenrecorder eingebaut.

    Ausführungen: schwarz, oder schwarz mit Metallic-Oberseite
    Zubehör: Rechteckfuß

  • Mentioned in
  • -- Original prospect or advert ("Loewe 1979" Katalog)
  • Literature/Schematics (1)

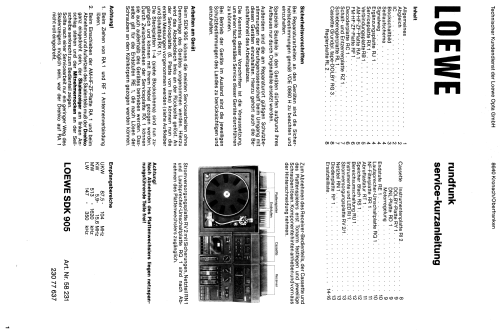

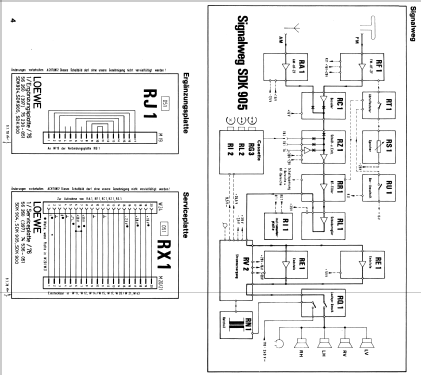

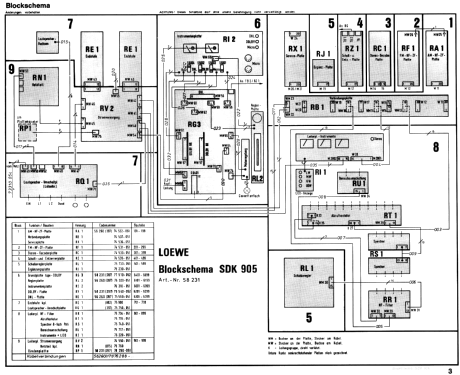

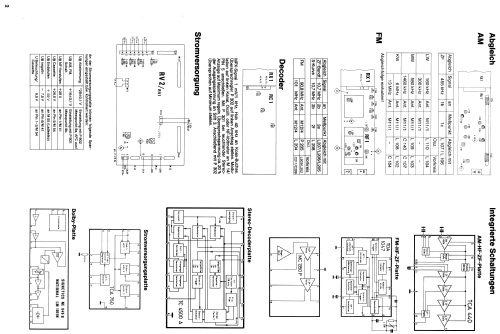

  • -- Original-techn. papers.
  • Author
  • Model page created by Heribert Jung. See "Data change" for further contributors.
