• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117856

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EAF801 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF121 AF124 AA112 or. AA116 AA113 AA113 B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org

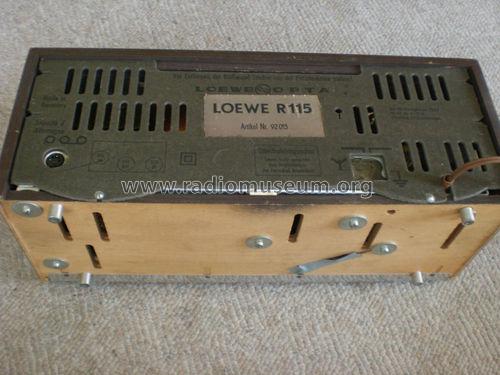

• Model: R115 92015 - Loewe-Opta; Deutschland

• Notes
• Transistoren: AF121, AF124; Dioden: AA112, 2× AA113.

• Price in first year of sale
• 189.00 DM

• Mentioned in
• Taxliste Franzis Verlag

• Literature/Schematics (1)

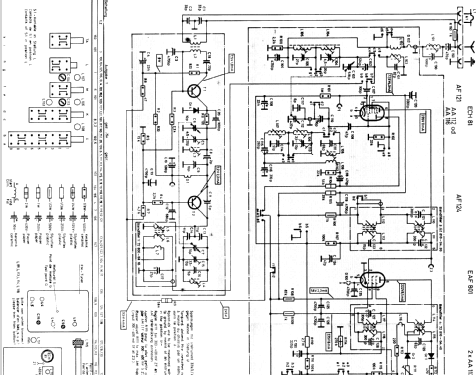

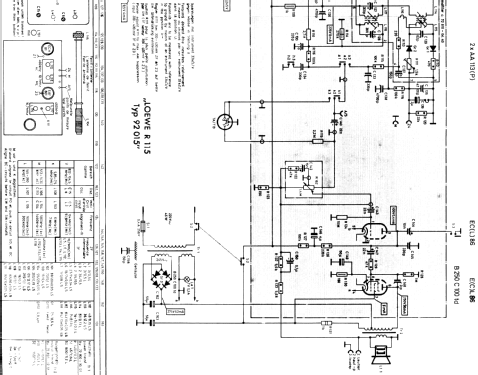

• -- Schematic

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
