R142 54230

• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1974–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29298

• • alternative name: Löwe Radio

• Picture
• Schematics

Previous Next

Previous Next

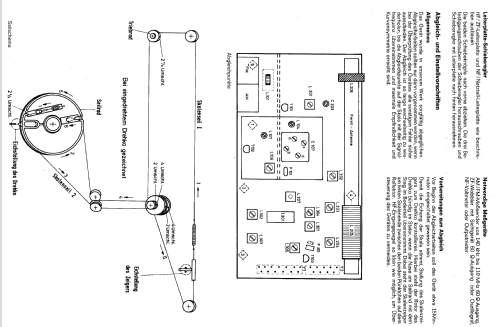

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: R142 54230 - Loewe-Opta; Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 110 x 160 mm / 19.3 x 4.3 x 6.3 inch

• Notes

• Loewe-Opta R 142 , + ICs: 1., Ausführung in Nußbaum oder Perl. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

  Das Hersteller-Datenblatt nennt abweichend ein Gewicht von ca. 2,8 kg.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Other Models

• Here you find 1629 models, 1368 with images and 1183 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Loewe-(Opta); Deutschland
