• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22286

• • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL84 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

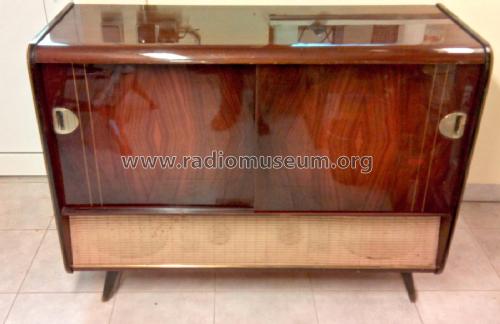

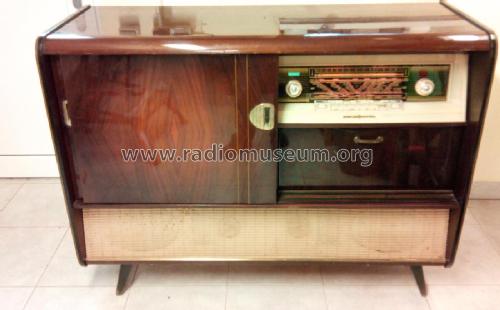

• Model: Rheingold 4841T/W - Loewe-Opta; Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1170 x 865 x 440 mm / 46.1 x 34.1 x 17.3 inch

• Notes
• Rectifier: B250/C125. Dial lamps: 2x 7V/0,3A.

• Net weight (2.2 lb = 1 kg)
• 53 kg / 116 lb 11.8 oz (116.74 lb)

• Price in first year of sale
• 798.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
