• Country
• Germany

• Manufacturer / Brand
• Opta-(Spezial) (siehe auch Loewe-Opta)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2824

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

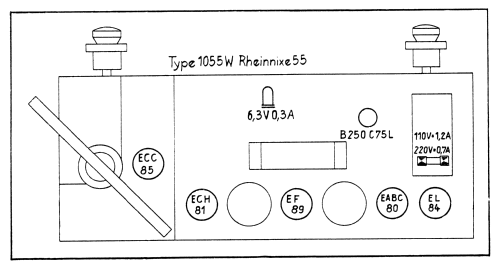

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

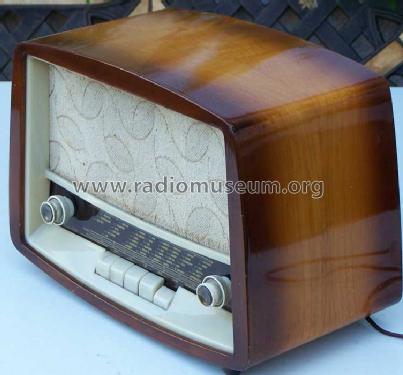

• Model: Rheinnixe 1055W - Opta-Spezial siehe auch Loewe-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 360 x 265 x 190 mm / 14.2 x 10.4 x 7.5 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 200.00 DM

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
