• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1975–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123665

• • alternative name: Löwe Radio

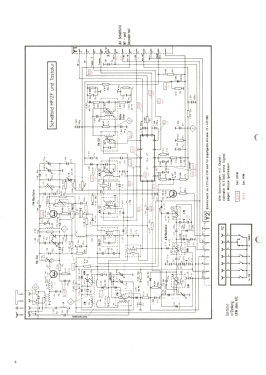

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• BF314 BF494 BC238 TBA570 SN76115 BC239 BC182 BC328 BC338 BD507 BD508 BA182 1N4151 AA119 AA144 B30C300 B40C1500

• Main principle
• Superheterodyne (common); ZF/IF 460 or 473/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: S500 55270 - Loewe-Opta; Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 505 x 115 x 220 mm / 19.9 x 4.5 x 8.7 inch

• Notes

• Steuergerät; Stereo-NF-Verstärker mit 2 Endstufen je 7 W Sinus. Zwei Konzertboxen LO18 Art.Nr. 70190 gehören zum Lieferumfang.

  Gehäuse-Ausführung: Schleiflack weiss oder Graphit-Metalleffekt-Lackierung.

  Halbleiterliste: Je 1x pro Typ, nicht alle Typen erfasst.

  Exportmodelle haben eine AM-ZF von 473 kHz.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Source of data
• Handbuch VDRG 1976/1977

• Mentioned in
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
